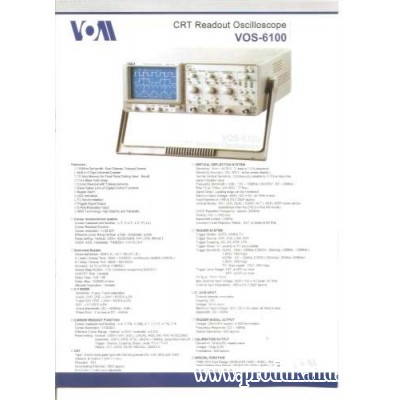

VOM VOS-6100 CRT Readout Analog Oscilloscope

Features

1. 100MHz Bandwidth, Dual Channel, Delayed Sweep
2. Built-In 6 Digit Universal Counter
3. 10 Sets Memory for Front Panel Setting Save Recall
4. Time Base Auto-Range
5. Cursor Readout with 7 Measurement
6. Panel Setup Lock of Digital-Control Functions
7. Buzzer Alarm
8. LED Indicator
9. TV Synchonization
10. Trigger Signal Output
11. Z-Axis Modulation Input
12. SMD Technology, High Stability and Reliability

Specification

Cursor Measurement

• Cursor Measurement Function :  T, 1/  T,  V; P ( t, v)
• Cursor Readout Function
• Cursor Resolution : 1 / 25 DIV
• Effective Cursor Range Vertical : V/ DIV, AC/ DC/ GND, CH1, CH2, INV, ALT, CHOP, ADD; Horizontal : TIME? DIV, x1/ x10) , X-Y

Horizontal System

• Horizontal Modes : MAN ( A) , ALT, DELAY ( B)
• A ( main) Sweep Time : 50nS ~ 0.5S/ DIV, continuously variable ( UNCAL)
• B ( delay) Sweep Time : 50nS ~ 50mS/ DIV
• Accuracy : ± 3 % ( ± 5 % at x 10MAG)
• Sweep Magnification : x10 ( maximum sweep time 5nS/ DIV)
• Hold OFF Time : Variable
• Delay Time : 1µ S ~ 5S
• Delay Jitter : 1/ 20000 or less
• Alternate Separation : Variable

X-Y Mode

• Sensitivity : X-axis, Y-axis selectable
• X-Axis : CH1, CH2 ’ 2mV ~ 5V/ DIV ± 3%
• Y-Axis : CH1, CH2 ’ 2mV ~ 5V/ DIV ± 3%
• EXT ’ 0.1V/ DIV ± 5%
• X-Axis Bandwidth : DC ~ 500KHz ( -3dB)
• Phase Error : 3° or less at DC ~ 50KHz

Cursor Readout Function

• Cursor Resolution : 1/ 100DIV
• Effective Cursor Range : Vertical : ± 3DIV, Horizontal : ± 4DIV
• Cursor Measurement Function :  V,  V% ,  VdB,  T, 1 /  T,  T% ,
• Panel Setting :
  • Vertical : V/ DIV ( CH1, CH2) , UNCAL, ADD, INV, P10, AC/ DC/ GND
  • Horizontal : S/ DIV ( MTB, DTB) , UNCALx 10, Delay time Hold-off
  • Trigger : Source, Coupling, Slope, Level, TV-H
  • Others : X-Y, LOCK, SAVE / RECALL, MEM 0-9

CRT

• Type : 6-inch rectangular type with internal graticule 0% , 10% , 90% and 100% markers. 8x10DIV ( 1 DIV = 1 cm)
• Phosphor : P31
• Accelating Potensial : 16KV approx
• Illumination : Continuous adjustable

Vertical Deflection System

• Sensitivity : 2mV ~ 5V/ DIV, 11 step in 1-2-5 sequence
• Sensitivity Accuracy : 3% ( 5DIV : at the center display)
• Vernier Vertical Sensitivity : Continuosly variable to 1 / 2.5 or less than panel-indicated value
• Frequency Bandwidth ( -3dB) : DC ~ 100MHz ( 2mV/ DIV : DC ~ 20MHz)
• Rise Time : 3.5ns ( 2mV/ DIV : 17.5ns)
• Signal Delay : Leading edge can be monitored
• Maximum Input Voltage : 400V ( DC + AC) at 1KHz or less
• Input Impedance : 1M& ± 2% / / 25pF approx
• Vertical Modes : CH1, CH2, DUAL ( CHOP / ALT) , ADD ( DIFF mode can be established when the CH2 is in the INV mode)
• CHOP Repetition Frequency : Approx. 250KHz
• Polarity ( INV) : CH2 only
• Bandwidth Limited : 20MHz
• Common-mode Rejection Ration : 50: 1 or better at 50KHz

Trigger System

• Trigger Modes : AUTO, NORM, TV
• Trigger Source : CH1, CH2, LINE, EXT
• Trigger Couplig : AC, DC, HFR, LFR
• Trigger Slope : + / – polarity or TV sync polarity
• Trigger Sensitivity :
  • AUTO : 10Hz ~ 20MHz, 0.35DIV, 50mVpp ( 20MHz ~ 100MHz) 1.5DIV, 150mVpp
  • NORM : DC ~ 20MHz, 0.35DIV, 50mVpp ( 20MHz ~ 100MHz) 1.5DIV, 150mVpp
  • TV : Sync signal, 1DIV, 200mVpp
  • Trigger Level Range :
    • INT : ± 4DIV or more
    • EXT : ± 0.4DIV or more
    • TV Sync : TV-V, TV-H
    • Max. External Inout Voltage : 400V ( DC + AC peak) at 1KHz
    • External Input Impedance : 1M& ± 5% // 25pF approx

Z-Axis Input

• External intensity modulation
• Coupling : DC
• Voltage : 5V or more
• Maximum Input Voltage : 30V ( DC + AC peak) at 1KHz or less
• Bandwidth : DC ~ 5MHz

Trigger Signal Output

• Voltage : 25mV/ DIV approx. in 50& termination
• Frequency Response : DC ~ 10MHz
• Output Impedance : 50& approx

Calibration Output

• Waveform : 1KHz ± 5% , square wave
• Voltage : 2Vpp ± 2%
• Impedance : 2k& approx

Special Function

• TIME / DIV Auto Range ( MOS-6103 / 6061 / 6060) : Provided
• Panel Setting Save Recall ( MOS-6103 / 6061 / 6060) : 10 set
• Panel Setups Lock : Provided
