Siglent SDS1102CML Dual-Channel Bench Oscilloscope (100 MHz Bandwidth)
Description
Siglent SDS1102CML Dual-Channel Bench Oscilloscope (100 MHz Bandwidth) Details

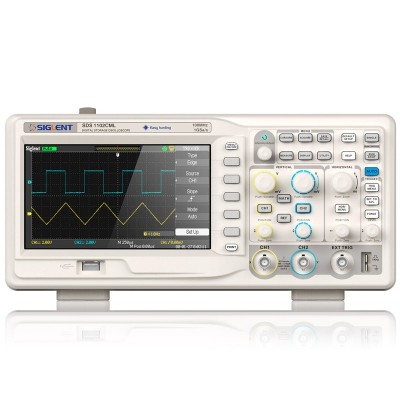

The SDS1102CML is a dual-channel digital oscilloscope with in-built single-shot bandwidth of 100MHz, single real-time sampling rate up to 1GSa/s and equivalent sampling rate up to 50GSa/s and memory depth of 2Mpts.
All of Siglent’s CML range of oscilloscopes also come as standard with a large, 7-inch LCD screen for viewing and monitoring changes in waveforms. This screen is also presented in full colour, allowing users to easily identify waveforms and track them accurately.
The CML range also includes unique digital filter functions that allow users to use high pass, low pass, band pass and band stop digital filters to extract noise from readings, multiple trigger types (Edge, Pulse, Video, Slope and Alternative) and also includes the ability to extract data using the included USB and RS-232 ports. This data can then be analysed at a later time using the included software package (which also enables remote operation of the oscilloscope).
Siglent SDS1102CML Digital Oscilloscope Key Features
- 100MHz bandwidth
- 7-inch colour LCD display
- Real-time sampling rate of 1GSa/s
- Dual-channel measurements
- Memory depth of 2Mpts
- Equivalent sampling rate of 50GSa/s
- Rise time <3.5ns
- Input Impedance: 1MΩ‖17pF
- Time base range: 2.5ns/div-50s/div
- Vertical sensitivity of 2mV-10V/div
- 8 bit vertical resolution
- CH1, CH2, EXT, EXT/5 and AC Line trigger sources
- Edge, Pulse, Video, Slope and Alternative trigger types
- High pass, low pass, band pass and band stop digital filters
- Internal storage stores 2 groups of reference waveform, 20 group settings and 10 waveform groups
- Multiple language interface
- Remote control via included PC software package
- USB interface and RS-232 port
Full List of Products Included
- Siglent SDS1102CML Digital Oscilloscope
- 1:1/10:1 Probe (2x)
- Power cable
- Qualified certification
- CD (including Easyscope computer software system)
- User Manual
- USB Cable
Technical Specifications
| Model | SDS1072CML | SDS1102CML | SDS1152CML |
| Bandwidth | 70MHz | 100MHz | 150MHz |
| Channels | 2CH+1EXT | ||
| Real time sampling rate | 1GSa/s | ||
| Equivalent sampling rate | 50GSa/s | ||
| Memory depth | 2Mpts | ||
| Rise time | < 5ns | < 3.5ns | < 2.3ns |
| Input impedance | 1MΩ‖17pF | ||
| Time base range | 5.0ns/div-50s/div | 2.5ns/div-50s/div | |
| Scan: 100ms-50s/div | |||
| Vertical sensitivity | 2mV-10V/div | ||
| Vertical resolution | 8bit | ||
| Trigger source | CH1, CH2, Ext, Ext/5, AC Line | ||
| Trigger types | Edge, Pulse, Video, Slope, Alternative | ||
| Math Operation | +, -, ×, ÷, FFT | ||
| Digital filter | High pass, Low pass, Band pass, Band Stop | ||
| Max input voltage | ±400V (DC+AC Pk-Pk), CAT I, CAT II | ||
| Internal storage | 2 groups of reference waveform, 20 groups of setting, 10 groups of waveform | ||
| External storage | Bitmap save, CSV save, Waveform save, Setting save | ||
| Language | English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic | ||
| Interface | USB Host, USB Device, RS-232, Pass/Fail out | ||
| Display | 7 inches(178mm) color TFT(480*234) LCD | ||
| Power | AC 100-240V, 45Hz-440Hz, 50VA Max | ||
| PC software | Can through the computer remote control oscilloscope, extraction waveform analysis data | ||
| Remark | With original source seamless connection, form signal collection, produce integration system | ||
