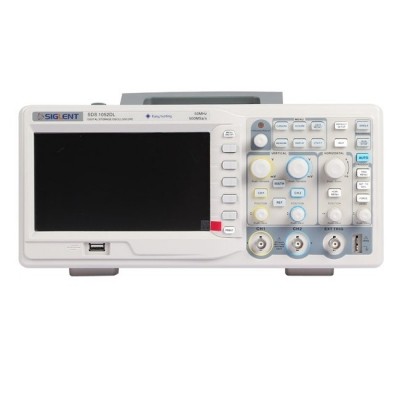

Siglent SDS1052DL Digital Oscilloscope
The SDS1052DL is a dual-channel digital oscilloscope with bandwidth of 50MHz, 500MSa/S real-time sample rate and 50 GSa/s equivalent sample rate.
The device includes the ability to use 2 channels at the same time, and also includes 1 external triggering channel built into the device. Results are shown as clear waveforms on the SDS1052Dl’s 7-inch colour TFT screen, and the device also has backlit buttons for easy interpretation in low light conditions.
Also includes in the SDS1052DL are multiple trigger modes; edge, pulse, slop, video and alternate trigger modes are available. The device also features memory depth of 32kpts and vertical sensitivity range of 2mV/div – 10V/div.
The SDS1052DL also has built in digital filter and a recorder function for storing test data. It also has USB and RS-232 ports for downloading this data to PC, and the interface of the device is available in 12 different languages.
Specifications
| Model | SDS1022DL | SDS1052DL | SDS1102DL | SDS1202DL |
| Bandwidth | 25MHz | 50MHz | 100MHz | 200MHz |
| Channels | 2CH+1EXT | |||
| Real time sampling rate | 500MSa/s | |||
| Equivalent sampling rate | 10GSa/s | 50GSa/s | ||
| Memory depth | 32k | |||
| Rise time | < 14ns | < 7ns | < 3.5ns | < 1.8ns |
| Input impedance | 1MΩ‖17pF | |||
| Time base range | 25ns/div-50s/div | 10ns/div-50s/div | 5ns/div-50s/div | 2.5ns/div-50s/div |
| Scan: 100ms-50s/div | ||||
| Vertical sensitivity | 2mV-10V/div | |||
| Vertical resolution | 8bit | |||
| Trigger source | CH1, CH2, Ext, Ext/5, AC Line | |||
| Trigger types | Edge, Pulse, Video, Slope, Alternative | |||
| Math Operation | +, -, ×, ÷, FFT | |||
| Digital filter | High pass, Low pass, Band pass, Band Stop | |||
| Max input voltage | ±400V (DC+AC Pk-Pk), CAT 1, CATII | |||
| Internal storage | 2 groups of reference waveform, 20 groups of settings, 10 groups of waveforms | |||
| External storage | Bitmap save, CSV save, Waveform save, Setting save | |||
| Language | English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic | |||
| Interface | USB Host, USB Device, RS-232, Pass/Fail out | |||
| Display | 7 inches(178mm) color TFT(480*234) LCD | |||
| Power | AC 100-240V, 45Hz-440Hz, 50VA Max | |||
| PC software | Can through the computer remote control oscilloscope, extraction waveform analysis data | |||
| Remark | With original source seamless connection, form signal collection, produce integration system | |||
Accessories:
- SDS1052DL Digital Oscilloscope
- Set of probes
- USB Cable
- Manual
- 220V AC EU power cord ( unit is 220V and 110V selectable )
- CD inlcuding Software / manual (Windows XP, Vista, 7)
