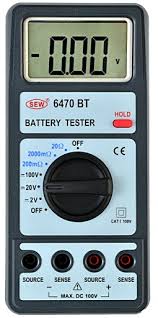

SEW 6470 BT Battery Tester
Features
- 2000 counts.
- DC Voltage measurement.
- 4-wire resistance measurement.
- Data hold function.
- Low battery indication.
- 9V DC power supply.
- Measure battery types: Li-ion, Ni-Cd, Ni-MH
- Simple operation.
- Lead resistance and contact resistance eliminated.
Specifications
| DC Voltage | |||
| Range |
2V |
20V |
100V |
| Resolution |
1mV |
10mV |
100mV |
| Accuracy |
±(1%rdg+1dgt) |
±(1%rdg+1dgt) |
±(1%rdg+1dgt) |
| Resistance | |||
| Range |
200mΩ |
2000mΩ |
20Ω |
| Resolution |
0.1mΩ |
1mΩ |
10mΩ |
| Accuracy |
±(3%rdg+3dgt) |
±(3%rdg+3dgt) |
±(3%rdg+3 dgt) |
| General | |||
| Low battery indication |
” ” sign appears on the display when the battery voltage drops below accurate operating level. |
||
| Dimensions | 192(L) × 88.6(W) × 45.2(D)mm | ||
| Weight (battery included) |
Approx. 360g | ||
| Power source | 9V(6F22) × 1 | ||
| Safety standard | EN 61010-1 CAT I 100V EN 61326-1 |
||
