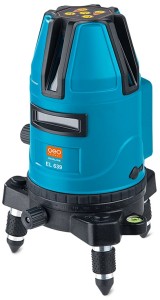

The all-rounder. Four vertical angles at 90°, a long horizontal line, plumbing function and the excellent visibility of the laser lines make the device the indispensable measuring tool for all interior levelling work.
Four vertical angles at 90°, a long horizontal line, plumbing function and the excellent visibility of the laser lines make the device the indispensable measuring tool for all interior levelling work.
Technical Data
| Self-levelling range | ± 3,5° |
| Accuracy | ± 3 mm / 10 m |
| Working range | 20 m* (radius) |
| Power supply | 4 x AA Alkaline |
| Operating time (all lines switched on) | 6 h |
| Dust/water protection | IP 54 |
| Laser diode / class | 635 nm / 2 |
| Temperature range | -10°C to +45°C |
| Weight (instrument with battery) | 1,0 kg |
* depending on room illumination
Features
- 4 vertical lines at 90° to each other
- 1 horizontal line
- Plumb down beam
- Laser lines switchable separately
- Plumbing function
- Self-levelling function can be locked for manual use
- Visual and audible alarm when out of self-levelling range
- Integrated floor tripod
- 360° circle
- 5/8” connection at the instrument bottom
Supplied with
- Laser glasses
- 4 x AA Alkaline battery
- Hard case
