Metal Detector Fisher M-101 Rebar Locator
Description :
Metal Detector Fisher M-101 Rebar Locator
Designed Specially for Finding Rebar and other Metal Objects Embedded in Concrete, Conduits, PK Nails, Wiring, Wall Studs, etc.
The Fisher M-101 metal detector was designed specially for finding reinforcing bars and other metal objects embedded in concrete, conduits, pk nails, wiring, wall studs and other metallic objects. Users may expect accuracy to 1/4″ of the center line of the rebar. Turn the instrument on and only the penetration control need be adjusted for most operations, allowing maximum penetration depth for metals.
A preset circuit eliminates ground effects caused by highly mineralized materials and false signals due to loop movement. The M-101 also can effectively locate small metal items carried on or within a person and is substantially more sensitive than the average low cost metal detectors used at airports, so that a given metal item can be found at a greater distance from the search loop itself. Searches in water may be up to the control box. The search loop and cord are waterproof. Backed by Fishers industrial 2 year warranty.
Features:
- Multi-purpose machine with excellent gold prospecting capabilities
- Frequency : 4.5 kHz
- Warranty : 2 Year Limited
- Total Weight : 2.8 lbs (1.27 kgs)
- Sensitivity Adjustment Range : 12:1
- Receiver Left / Right Guidance : Audible and Visual
- Signal : Advanced Digital Signal Processing for Accurate Locating
- Receiver Depth Accuracy : +1 Inch Per Foot in Nominal Conditions
Specifications:
- Operating Frequency: 4.5kHz
- Power Supply: +/– 9V, 2 – 9V NEDA 1604
- Weight: 2.8lbs (1.3kg)
- Dimensions: Control Box: 3 x 5 x 6” (8 x 12 x 16cm)
- Shipping Dimensions 26 ½ x 6 ¼ x 6 ¼” (67 x 16 x 16cm)
- Download Manual

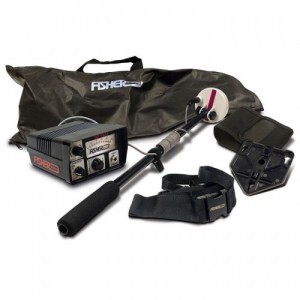

What’s in the Box:
- (1) Harness
- (1) Carrying Case
- (1) Manual
