Liquid Leak Detector Fisher Labs XLT30-B w/Multi-Sensor Microphone
Description :
Liquid Leak Detector Fisher Labs XLT30-B
Fishers XLT-30 takes leak detection to a new level. Ultra sensitive sound microphones, combined with a non-distortion amplification system and crystal clear audio headphones make the XLT-30 the leak detector destined to set new standards for the leak professional
Option B – Fisher’s new MULTI-SENSOR has superior leak detection capabilities. In an extremely compact design, Fisher has achieved higher performance, improved audio clarity, improved sensor electronics, and better sensitivity to leaks with less background noise – all with heavy duty characteristics of the trusted Big Foot. The MULTI-SENSOR is used for both the ground microphone and direct contact applications – the one sensor that does it all.
Specifications:
- Operating Frequency: 60 Hz – 6 kHz, Gain = 95 db; 20 Hz – 60 Hz, Gain > 90 dB
- Filter Types and Frequency Ranges: All Pass: 60 Hz to 6 kHz; Low Pass: Adjustable cut-off frequency from 150 Hz to 2.4 kHz; High Pass: Adjustable pass band frequency from 150 Hz to 2.4 kHz; Band Pass: Adjustable center frequency from 150 Hz to 2.4 kHz; Notch Filter: Adjustable center frequency rejection from 150 Hz to 2.4 kHz. Can be used simultaneously with any filter option
- Output Indications: Audio: High performance headphones (64 ohms)
- Visual: LCD bargraph and 2-digit numeric display
- Grade of Protection: Splash Proof
- Battery Test: Automatic, real time battery level indicator
- Battery Quantity/Type: Two, 9 Volt alkaline
- Battery Life: 50 Hours (approximate)
- Carrying Case Dimensions: 21”x 6”x 14”
- Weight: 10 lbs

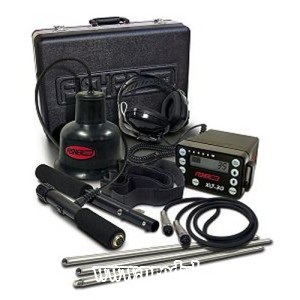

What’s in the Box:
- (1) Heavy-Duty Carrying Case
- (1) Probe Cable Assembly
- (1) Operation Manual
- (1) Control Unit
- (1) Head Phones
- (1) Multi-Sensor
- (1) Carry Strap
- (1) Housing Bracket
- (1) Sound Rods
