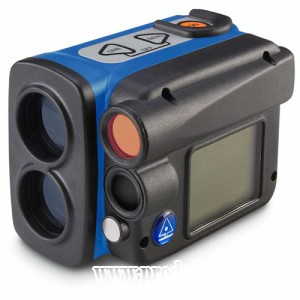

Laser Rangefinder Haglof L5

Description :

The Haglof L5 Laser Range Finder is a quality surveying tool that provides very accurate and extensive measuring range. Its invisible eye-safe laser has the ability to reach almost any target, allowing you to choose between 3 different measuring modes: closest object, farthest object or  strongest signal object. To spot individual objects easily this tool has a crosshairs in the scope.

The Haglof L5 Laser Rangefinder has a long range measuring capacities, it can deliver measurements from 1.5 ft to 2000 ft with an accuracy of +/- 0.1 ft.

The Haglof L5 Laser Range Finder not only calculates long distances accurately, it also measures heights up to a 1000 ft and gives you angle measurements that can be used to compute inclinations in slopes. The accuracy for those measurements is +/- 0.1 ft and +/- 0.1 degree respectively.

This laser range finder features two phenomenal functions. The Tree Limit or Hazard Trees function will give you an estimate or the risk that one object can hit another in case of falling in its direction. This can be used to calculate hazard trees or poles standing close to a house or a power line. The L5 laser range finder also features the Delta Height function. This function is designed to calculate line sag, basically it gives us the height difference of a specific point situated at a straight imaginary line between two fixed points and a third point situated at the angular sag line, very useful while working on power lines.

All the features mentioned above make this laser rangefinder a very powerful tool for engineers and land surveyors.

The Haglof L5 Laser Range Finder is equipped with a built-in memory that allows to save about 2000 measurements. All your calculations can be transmitted via IR or Bluetooth to your preferred device for further processing.

The Haglof L5 Laser Rangefinder features a rugged and reinforced housing and it only weights 9 oz. It’s water, dust, heat and shock resistant and its high visible display is also reinforced and proofed against scratches and drops. This rangefinder has a built-in rechargeable battery that allows approximately 9,000 measurements.

Features:

• Up to 0.1 foot distance accuracy
• 0.1 degree inclination accuracy
• Degrees, grads and percent
• Feet and meters
• Graphic LCD data display
• Invisible laser
• Tilt sensor
• 2,000 ft distance measuring range
• 1,000 ft height measuring range
• Data storage and processing capacities
• Comes in black
• Measures distance, height and inclination
• Hazard Trees and Delta Height Function
• Power: Built-in battery 3.7 V Li-lon
• Data transfer via Bluetooth and IR
• 1X Magnification
• IP67 dust and waterproof
• Tripod adaptable
• Rugged and reinforced
• Weights 9 oz

Specifications:

• Size:93x63x72mm /3.7×2.5×2.8”.
• Weight:243 g/8.6oz.
• Battery and consumption:Rechargeable Li-Ion 3.7V, built-in, approx. 9000 measurings. Charging time max 3.5h. USB mini B interface wall charger 110/220AC/5VDC; car charger adapter 12VDC. Cable Usb mini B Male/Usb Type A Male, 0.5m. Consumption max 0.9W.
• Communication:Bluetooth® class 2, Spp (serial profile), pincode 12345.
• Temperature: -20° to +45° C/ -4°F-113°F.
• Height: 0-999 m/ft. Resolution height: 0.1 m/ft.
• Angle: -55° – 85°. Unit: Degrees 360⁰, Grads 400⁰ and %. Resolution: 0.1⁰. Accuracy: 0.1⁰.
• Laser: Distance: 46cm/1.5ft – 700m/2000ft depending on target. Accuracy: 4cm/0.1ft.
• Resolution: 0.1m/ft.
• Shock/Vibration/Moist/Laser class: MIL-STD-810E. Housing frame material glass filled poly carbonate, IP67, NEMA6, Laser class 1, 7mm (FDA, CFR21) Class 1m (IEC 60825-1:2001).
• Sight: LED crosshairs 1 x magnification.
• Display: Graphic LCD 100x60pixles.
• Dataformat: Nmea or Ascii.
• Memory: Non-volatile. 62 log piles /wood chip piles inventories. Maximum 8 sections and 57 heights per log pile. Maximum 4 sides and 28 heights per side per wood chip pile.

What’s in the Box:

• (1) Haglof L5 Laser Range Finder 15-103-1030
• (1) Charging cable with adapter
• (1) Aluminum transport case
• (1) Soft carrying case
• (1) Lanyard
• (1) Built-in Li-Ion battery
• (1) User manual
• (1) 1-year limited warranty
