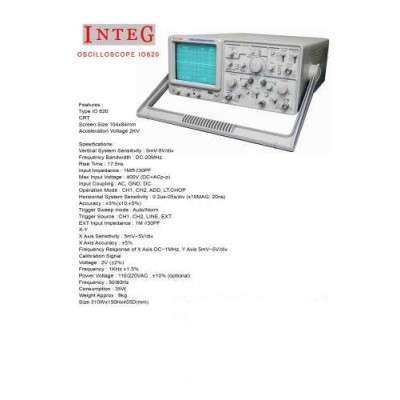

INTEG IO-620 Analog Oscilloscope

Feature :

• Type : IO-620
• CRT
• Screen Size : 104 x 84mm
• Acceleration Voltage : 2kV

Specification

Vertical System Sensitivity : 5mV-5V/div

Frequency Bandwidth : DC-20MHz

Rise Time : 17.5ns

Input Impedance : 1M&

Max. Input Voltage : 400V (DC+ AC, p-p)

Input Coupling : AC, GND, DC

Operating Mode : CH1, CH2, ADD, LT, CHOP

Horizontal System Sensitivity : 0.2µ s-0.5s/div (x10MAG – 20ns)

Accuracy : ± 3% (x10, ± 5%)

X-Y

• X Axis Sensitivity : 5mV-5V/div
• Y Axis Accuracy : ± 5%
• Frequency Response of X Axis DC-1MHz, Y Axis 5mV-5V/div

Calibration Signal

Voltage : 2V (± 2%)

Frequency : 1KHz ± 1.5%

Power Voltage : 110/ 220VAC ± 10% (optional)

Frequency : 50/80Hz

Consumption : 38W

Weight Approx : 8kg

Size : 310 x 150 x 455mm (WxHxD)
