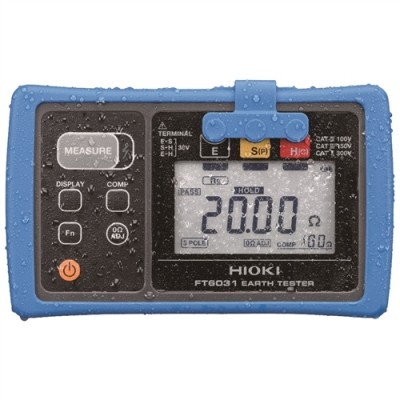

HIOKI EARTH TESTER FT6031
IP67 Dustproof and Waterproof Ground Resistance Tester
Overview
Earthing or grounding of electrical equipment is essential to maintain safety, protecting lives, as well as prevent damage to equipment. The FT6031-03 is a IP67 dustproof and waterproof two- or three-pole ground resistance tester with large, easy-to-read display, highly sensitive earthing rods, and innovative cable winder that significantly reduces the amount of time needed to complete earth resistance tests.
Key Features
- IP67 protected – top of the industry
- Test all ground types from Class A to Class D with a single meter
- Wide 0 to 2000Ω measurement range
- Minimize cabling time with innovative earthing rods and cable winder
Specifications
|
Measurement system |
Switchable between two- and three- electrode methods | ||
|
Measurement range |
20 Ω (0 to 20.00 Ω) | 200 Ω (0 to 200.0 Ω) | 2000 Ω (0 to 2000 Ω) |
|
Accuracy |
±1.5 %rdg. ±8 dgt. | ±1.5 %rdg. ±4 dgt. | ±1.5 %rdg. ±4 dgt. |
|
Earth voltage |
0 to 30.0 Vrms, Accuracy: ±2.3 %rdg. ±8 dgt. (50/60 Hz), ±1.3 %rdg. ±4 dgt. (DC) | ||
|
Dustproof and waterproof |
IP65/IP67 (EN60529) | ||
|
Power supply |
LR6 Alkaline battery ×4 Possible number of measurements: 100 times (measurement conditions: three-electrode method, measuring 10 Ω) |
||
|
Dimensions and mass |
185 mm (7.28 in)W × 111 mm (4.37 in)H × 44 mm (1.73 in)D, 570 g (20.1 oz) (including protector and batteries) |
||
|
Accessories |
Auxiliary earthing rod L9840 (2 piece set) ×1, Measurement cable (black 4 m) L9841 ×1, Measurement cable (yellow 10 m, equipped with winder) L9842-11 ×1, Measurement cable (red 20 m, equipped with winder) L9842-22 ×1, Carrying case C0106 ×1, Protector ×1, LR6 Alkaline battery ×4, Instruction manual ×1 | ||
