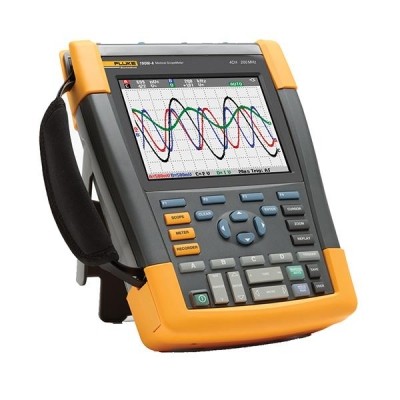

Fluke 190-104 4-Channel Industrial Scopemeter (100MHz)

THE FIRST HIGH-PERFORMANCE FOUR-CHANNEL SCOPES BUILT FOR HARSH INDUSTRIAL ENVIRONMENTS

INSTRUMENT FEATURES

This is the base model that only includes the scopemeter.

As the first four-channel portable scopes safety rated CAT III 1000V / CAT IV 600V, the Fluke ScopeMeter 190 Series II combines an unprecedented level of performance, ruggedness, and portability.

The Fluke ScopeMeter 190-104 (100MHz) and 190-204 (200MHz) combine the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Designed for plant maintenance engineers and technicians, these tough ScopeMeters go into harsh, dirty, and hazardous industrial conditions to test everything from microelectronics to power electronics applications.

Fluke 190-104 100MHz ScopeMeter Features

Bandwidth: Fluke 190-104: 100 MHz.

Real-time sample rate: Fluke 190-104: 1.25 GS/s.

Four electrically isolated inputs.

CAT III 1000V / CAT IV 600V safety rated.

Single shot, pulse width, and video triggering.

Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details.

Isolated USB ports for memory devices and PC connectivity.

8-hour battery life, standard with new Li-ion technology.

Easy-access battery door to make it easy to swap batteries.

A handy slot to tether and lock down the oscilloscope while unattended.

Display: 153 mm full color LCD with fast update rate.

Waveform Compare: Waveform reference with automatic Pass/Fail testing.

Dimensions: 270 x 190 x 70 mm.

Weight: 2.2kg (4.8lb).

Included Accessories:

Set of four probes, Hanging strap, USB cable, Li-ion battery BP291, a FlukeView demo package and Fluke 190-104 users manuals on CD-ROM
