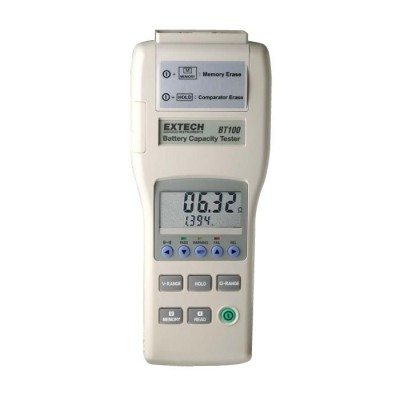

Extech BT100 Battery Capacity Tester

• Measures battery resistance and voltage simultaneously
• On-line testing while battery is in service
• Built-in datalogger stores up to 999 tests

Description

Check battery condition in seconds, even if the battery is in service, with the Extech BT100 Battery Capactiy Tester. Able to assess a range of battery types including nickel-cadmium batteries, lithium-ion, lead storage cell and nickel metal hydride batteries, the BT100 has a 1kHz test current and dual display for ease of use.

Measuring the internal resistance and output voltage of a battery simultaneously, the Extech BT100 also contains a built-in datalogger capable of storing up to 999 tests and comes packaged with software for downloading readings direct to a PC.

• Simultaneously measure battery resistance and voltage
• Capable of on-line testing without shutting down battery
• Built-in datalogger storing up to 999 tests
• PC software for downloading measurements to a PC

Specification

Resistance

• Range: 40mΩ, 400mΩ, 4Ω, 40Ω
• Resolution: 10μΩ, 100μΩ, 1mΩ, 10mΩ
• Basic accuracy: ±(1% reading ± 8d)

Voltage

• Range: 4V, 40V
• Resolution: 1mV, 10mV
• Basic accuracy: ±(0.1% reading ±6d)
• Max Input Voltage: 50VDC

General

• Power: 6 AAA batteries
• Battery life: 7 hours
• Dimensions: 9.75 x 4 x 1.75″ (250 x 100 x 45 mm)
• Weight: 17.5oz (500g)

Supplieed Accessories

• Extech BT100 Battery Capacity Tester
• Software and connectivity cable
• 2 x Kelvin alligator clips
• 2 x Kelvin test leads
• 6 x AAA batteries
