Extech 382252 Earth Ground Resistance Tester
- Comes complete with test leads and two auxiliary Earth bars
- AC/DC voltage, resistance, and continuity testing
- Auto power off
Details
Consisting of everything you’ll need to accurately measure earth ground resistance across 3 ranges up to 2000Ω, this great-value Extech bundle includes a tester, earth bars, carrying case and more!
The meter included with this kit is the Extech 382252, an earth ground resistance tester shaped like a multimeter that can measure 20Ω, 200Ω and 2000Ω earth resistance with basic accuracy of ±(2%rdg+2d). It can also use AC earth voltage from 0 to 200V AC and includes all necessary testing procedures for accurately determining earth resistance levels.
Measurements are shown on a large-size dual display with integrated backlight for use in poor lighting conditions. A data hold function is also included to temporarily store the last testing value taken on the instrument’s screen.
Key Features
- Measures earth ground resistance from 20 to 2000Ω
- Large size dual display with integrated backlight for use in poor lighting conditions
- Automatic zero adjustment
- Measures AC/DC voltage, resistance and continuity
- Auto power off when left idle conserves the battery life
- Overrange and low battery indicators

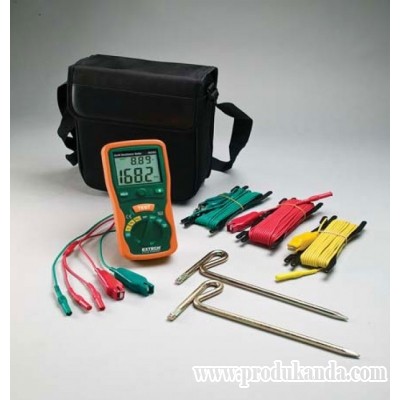

What’s Included?
- Extech 382252 Earth Ground Resistance Tester
- Test Leads
- 2 x Auxiliary Earth Bars
- Carrying Case
- Protective Rubber Holster
- 6 x 1.5V AA Batteries
Specification
|
Earth Ground Resistance Ranges |
20Ω/ 200Ω/2000Ω |
|
Basic Accuracy |
±(2%rdg+2d) |
|
Resolution |
0.01Ω/ 0.1Ω/1Ω |
|
Test Current/Frequency |
<2.5mA / 820Hz |
|
AC Earth Voltage/Frequency |
0 to 200VAC / 50 to 400Hz |
|
Accuracy |
±(3%rdg+3d) |
|
DC Voltage |
0 to 1000V |
|
Accuracy |
±(0.8%rdg+3d) |
|
Resistance |
0 to 200kΩ |
|
Accuracy |
±(1%rdg+2d) |
|
Continuity |
40Ω |
|
Power Supply |
Six 1.5V ‘AA’ Batteries |
|
Dimensions |
7.9 x 3.6 x 2″ (200 x 92 x 50mm) |
|
Weight |
1.5lbs (700g) (meter only) |
