Detail Produk Waterpass Automatic Level Geo Fennel FAL 32
Description :

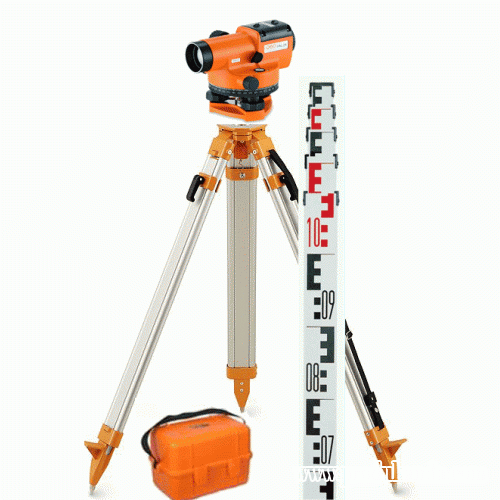

Waterpass Automatic Level Geo Fennel FAL 32
Rugged design for site use. Precision optics in a metal housing and a large range to suit all applications. Also available as set with tripod and levelling staff.
Features :
Metal housing
Mirror for easy reading of bubble
Suitable for both flat and domed head tripods
Specification :
Technical data
| Mean error for 1 km double levelling | 1,0 mm |
| Telescope magnification | 32 x |
| Objective diameter | 38mm |
| Shortest focussing distance | 0,3m |
| Working range of compensator | ±15′ |
| Levelling accuracy | ±0,5 |
| Circular bubble | 8’/2mm |
| Horizontal circle | 400 gon/360° |
| Dust / water protection | IP 54 |
| Weight | 1,5 kg |
