Detail Produk Total Station Geo Fennel TheoDist FTD 02
Description :

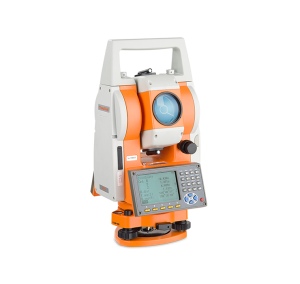

Total Station Geo Fennel TheoDist FTD 02 Reflectorless Total stations
The geo-FENNEL TheoDist® is designed to be user- friendly and quick to set up on any construction site. Easy to handle, robust, exact and reliable.
The main features of the geo-FENNEL TheoDist® are:
- Measuring programs that provide efficient and easy solution for setting out
- Three-dimensional measurement of coordinates
- Menu driven software with intuitive structure to maximise productivity
- A visible laser pointer to improve targeting accuracy and allowing measurements to be taken without looking through the telescope
- Data can be uploaded and downloaded to a PC via the RS-232 connection or SD-Card (FTD 02)
- Measuring range of up to 300m (FTD 05: 200m) without reflector
- Quick and easy set-up with the integrated laser plummet
The geo-FENNEL TheoDist® Series is equipped with a variety of programs from simple distance and angle measurement up to precise three-dimensional setting out.
- Missing Line
- Offset
- Remote elevation measurement
- Resection
- Integrated application programs for setting out office generated designs.
- Area
The communication software supplied with the geo-FENNEL TheoDist® allows the user to save the data in various formats. The data files can be converted into DXF format making them suitable to be uploaded into CAD Software such
as AutoCAD®.
Features :
- Coordinate measuring
- Setting out points
- Resection
- Missing line measurement
- Offset point
- Remote elevation measurement
- Area calculation
- Angle repetition
- Set out line
- Set out curve
- Set out road
Technical data
| Telescope | |
| Image | Erect |
| Objective aperture | 45 mm |
| Magnification | 30 x |
| Field of view | 1° 30′ |
| Resolving power | 4” |
| Shortest focus distance | 1.5 m |
| Distance measurement | |
| Reflectorless | 300 m |
| Reflective tape target | 600 m |
| Single standard Prism | 5,000 m |
| Accuracy | 2 mm + 2 ppm |
| Offset | variable |
| Measuring time | |
| Fine / Rapid / Tracking | 1,8 s / 0,9 s / 0,3 s |
| Minimum reading | 1 mm |
| Distance units | m / ft |
| Angle measurement | |
| Minimum reading resolution | 1” / 5” / 10” |
| Angle accuracy | 2” |
| Angle units | 100 % / 360° / 400 gon |
| Compensator | |
| Type | electronic |
| Range | ± 3° |
| Laser pointer | |
| Laser classification | 3R |
| Laser plummet | |
| Accuracy | ± 1 mm / 1.5 m |
| Laser classification | 2 |
| Display | |
| Dual LCD | 8 Lines, 18 Characters |
| Power | |
| Rechargeable battery type | 7.2 V DC NiMH |
| Operating time | 5 h |
| Charger | 100 / 240 V |
| Vial sensitivity | |
| Plate level vial | 30” / 2 mm |
| Circular vial | 8′ / 2 mm |
| General specs | |
| Internal memory | 50.000 Points |
| External memory | SD-Card |
| Weight | 6.5 kg |
| Opterating temperature | -20 °C – +50 °C |
| IP-Class | IP X4 |
| I/O-Port | RS-232 |
