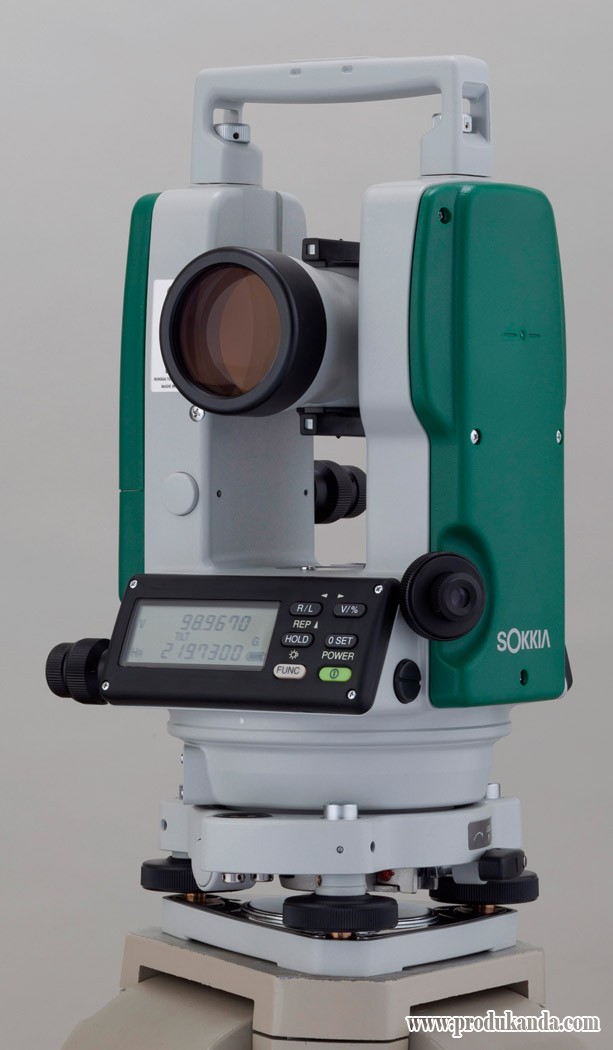

Detail Produk Digital Theodolite Sokkia DT 940
Digital Theodolite Sokkia DT 940 adalah produk baru dari SOKKIA, dengan Kualitas, Kinerja, dan Keterjangkauan bahwa Pastikan Profitabilitas Maksimum
Specifications
- Telescope Magnification: 30X
- Display Resolution (selectable) H & V: 1″/5″,0.2/1mg, 0.005/0.02mil
- Accuracy (ISO 12857-2 1997): 2″
- Display: LCD, 8 digits x 2 lines w/backlight
- Display location: On both faces
- Compensator: Dual-axis compensator, working range ±3″ (±55 mgon)
- Dust and water protection: IP66 (IEC60529)
- Weight with handle and battery: 4.7kg (10.3lb.)
- Battery: LR14/C batteries x2
- Continuous use with alkaline batteries: Approx. 75 hours
| DT240 DT540 DT740 DT940 Digital Theodolites (Standard Model) | |||||
|---|---|---|---|---|---|
| Model | DT240 | DT540 | DT740 | DT940 | |
| Telescope Magnification | 30x | 26x | |||
| Display resolutions (selectable) | 1″ / 5″ 0.2 / 1mgon |
5″ / 10″ 1 / 2mgon |
10″ / 20″ 2 / 5mgon |
||
| Angle Accuracy | 2″ | 5″ | 7″ | 9″ | |
| Automatic compensator | Working range | ±3′(±55mgon) | – | ||
| Control panel layout | On both faces | On single face | |||
| Weight w/batteries | 4.1kg (9.0lb.) | 3.5kg (7.7lb.) | |||
| Battery | LR6/AA batteries x 4 | ||||
| Operating time with alkaline batteries (approximate) |
Theodolite only | 100hours | 140hours | 150hours | 170hours |
